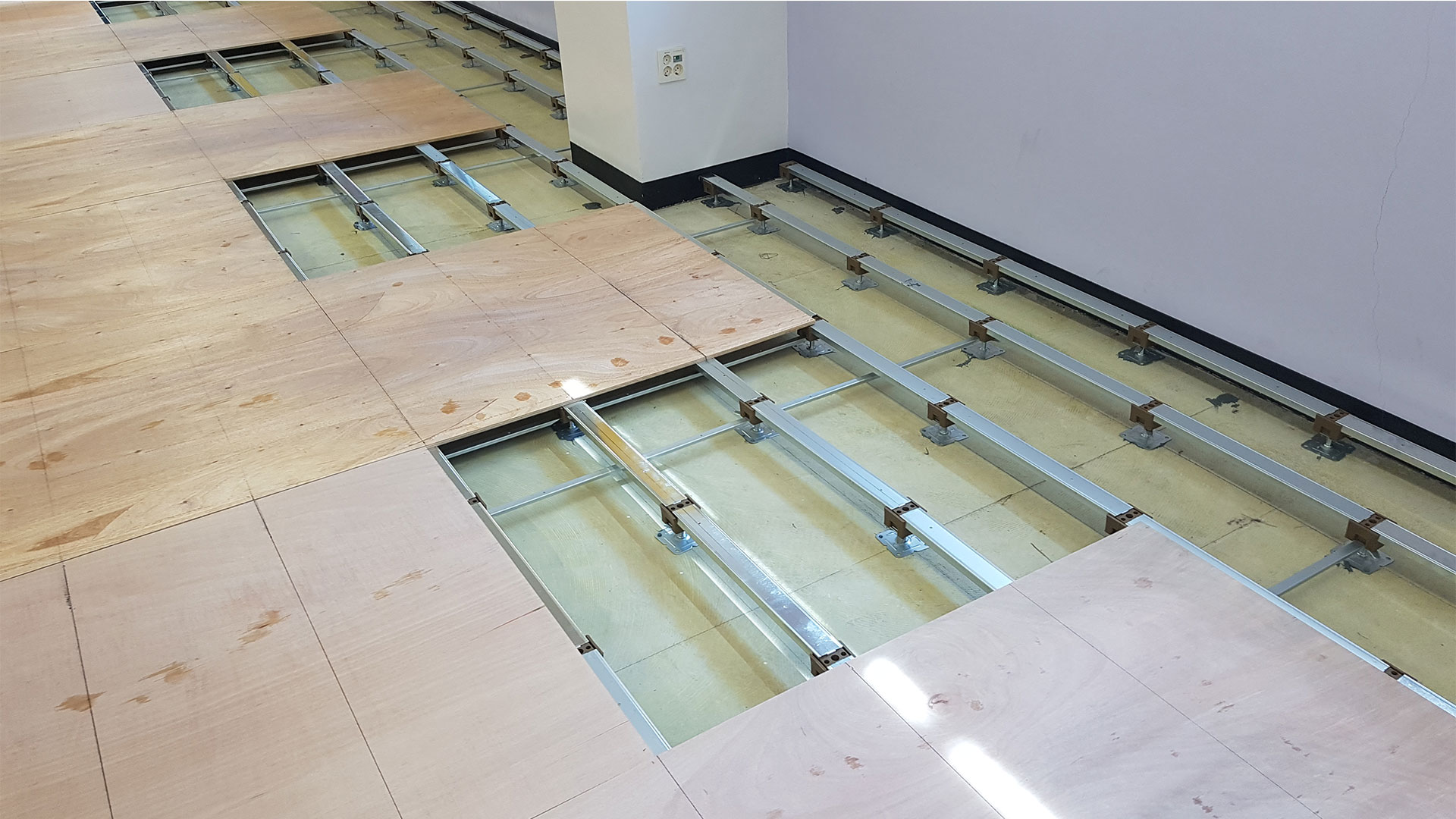

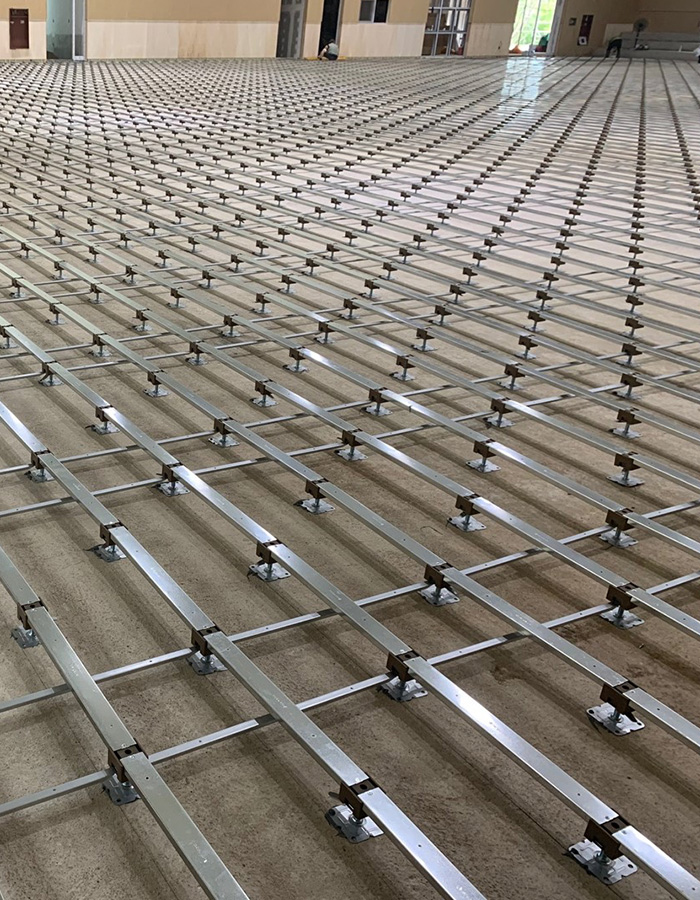

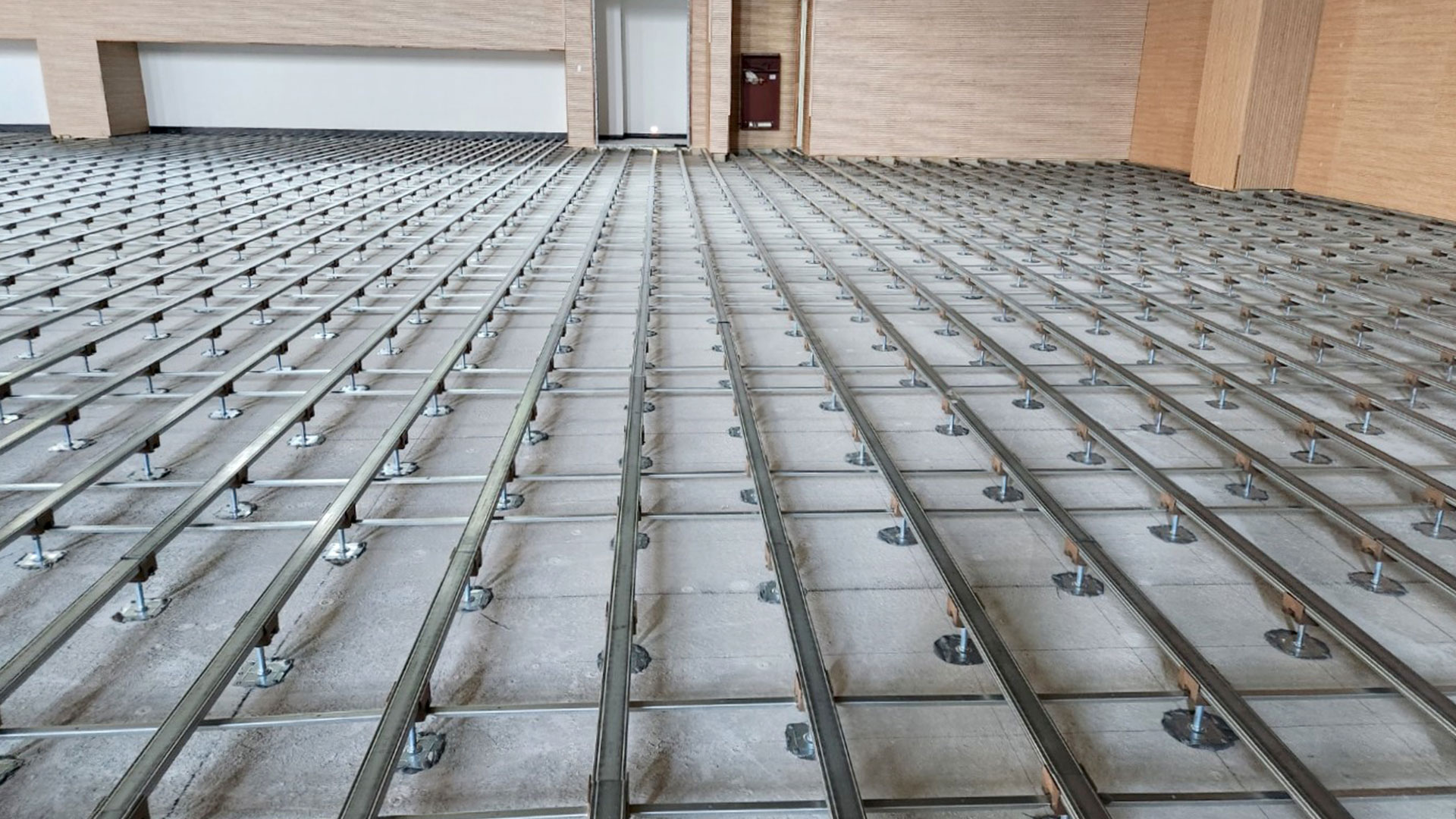

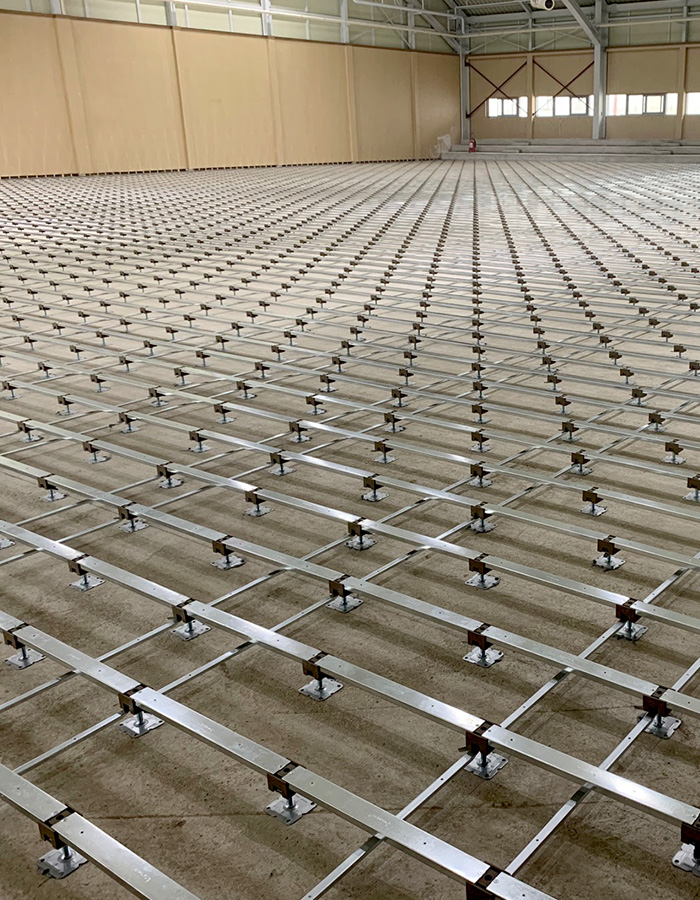

Installation gallery: View more

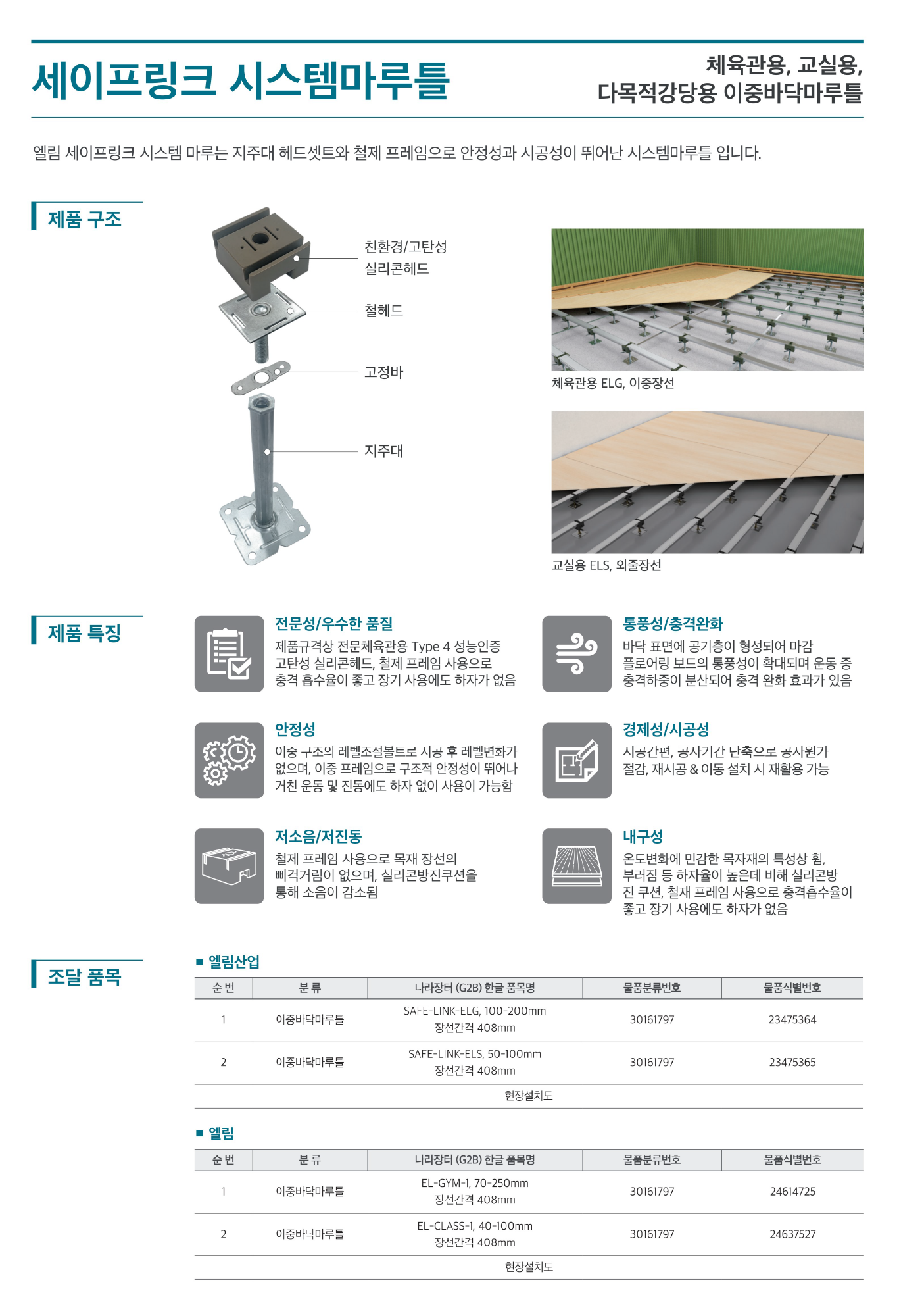

Product diagrams and catalog images are provided in Korean.

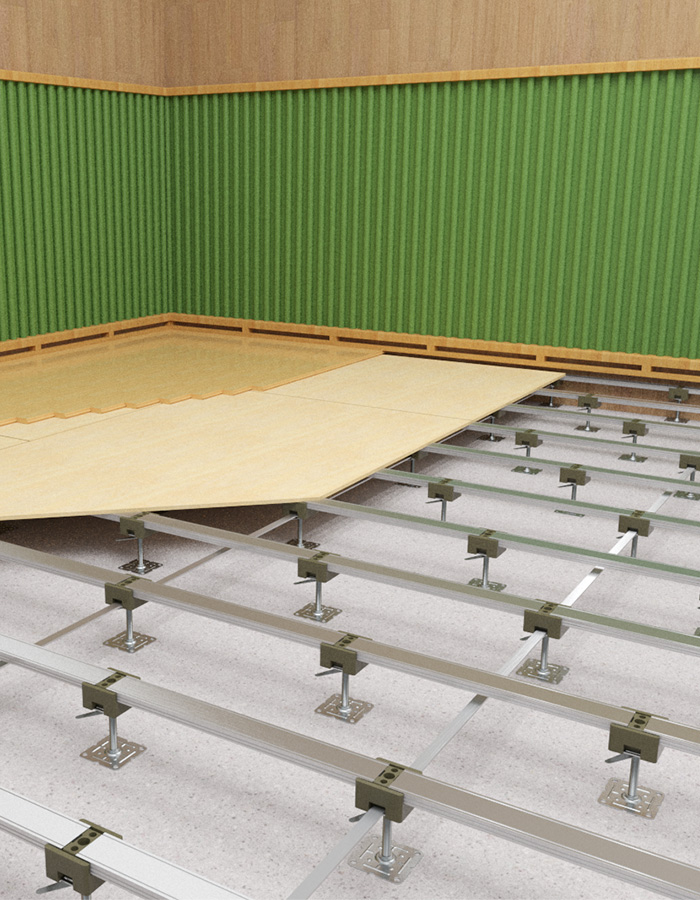

SafeLink Subfloor System

Gymnasiums, classrooms and multipurpose auditoriums

90,000

Published reference price (KRW/m²), installation included; plywood extra

High-resilience silicone and a robust steel frame absorb impact and provide lasting stability. The structure improves ventilation and distributes impact loads during exercise. Low noise and vibration suit multipurpose facilities, while the steel frame and silicone cushions combine durability, structural stability and economy. SafeLink is suited to gymnasiums, classrooms and multipurpose auditoriums.

Manufacturer:
ELIM
Joist spacing (mm):
408
Head:
High-resilience silicone head
Structure:
Steel frame
Sales volume (as of December 2023): 111,597 ㎡
Installed at: 202 sites across Korea

Specialist Performance and Quality

SafeLink has Type 4 performance certification for professional gymnasiums. High-resilience silicone heads and a robust steel frame provide strong impact absorption and lasting reliability, cushioning the loads generated during sports activities.

Ventilation and Impact Absorption

The air space beneath the floor improves ventilation and distributes impact loads during exercise. Airflow beneath the flooring also helps prevent moisture and mold buildup.

Low Noise and Vibration

The steel frame eliminates the squeaking associated with timber joists, while silicone vibration-isolation cushions reduce noise and vibration. This is particularly useful in shared facilities where noise matters.

Structural Stability and Economy

Dual-structure leveling bolts maintain floor level after installation, and the double-frame construction improves stability. Components can be reused when reinstalling or relocating the floor, offering an economical advantage.

Durability

Silicone vibration-isolation cushions and the steel frame absorb impact and prevent common defects such as bending or breakage, extending floor life while reducing reliance on temperature-sensitive timber.

Image Description
Product Images
1. Clean and mark out
Image Description

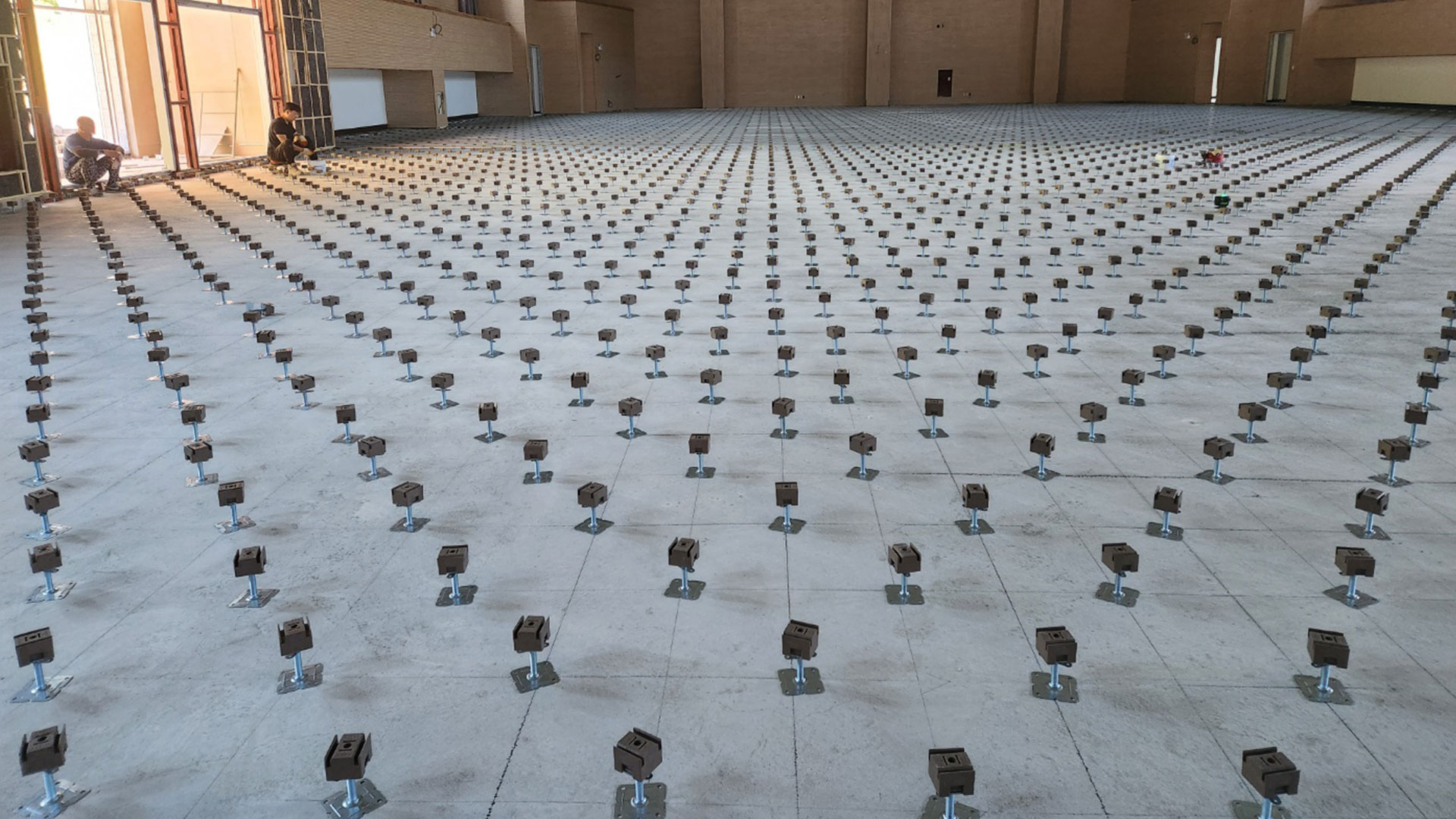

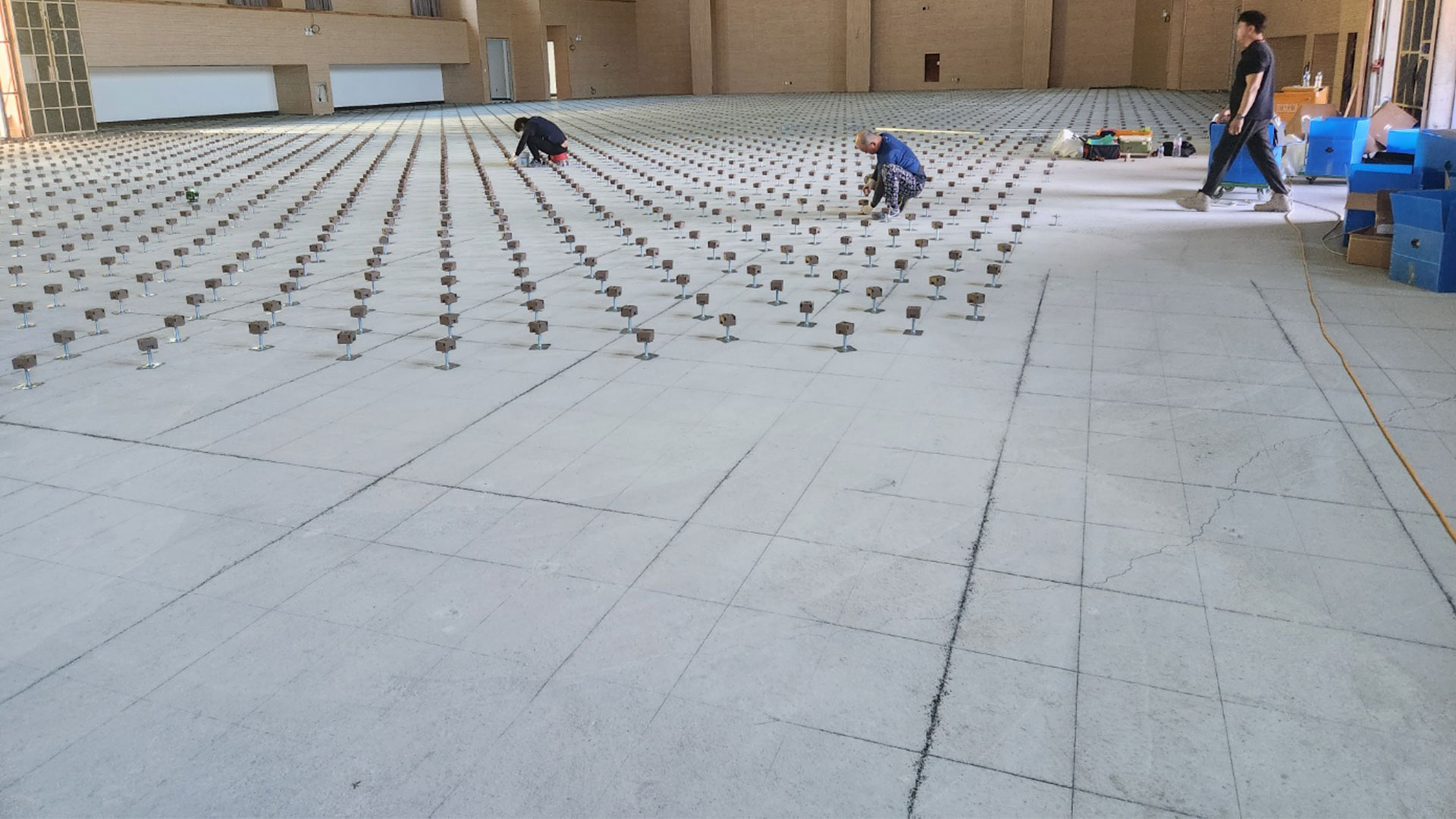

2. Position and level the heads
Image Description

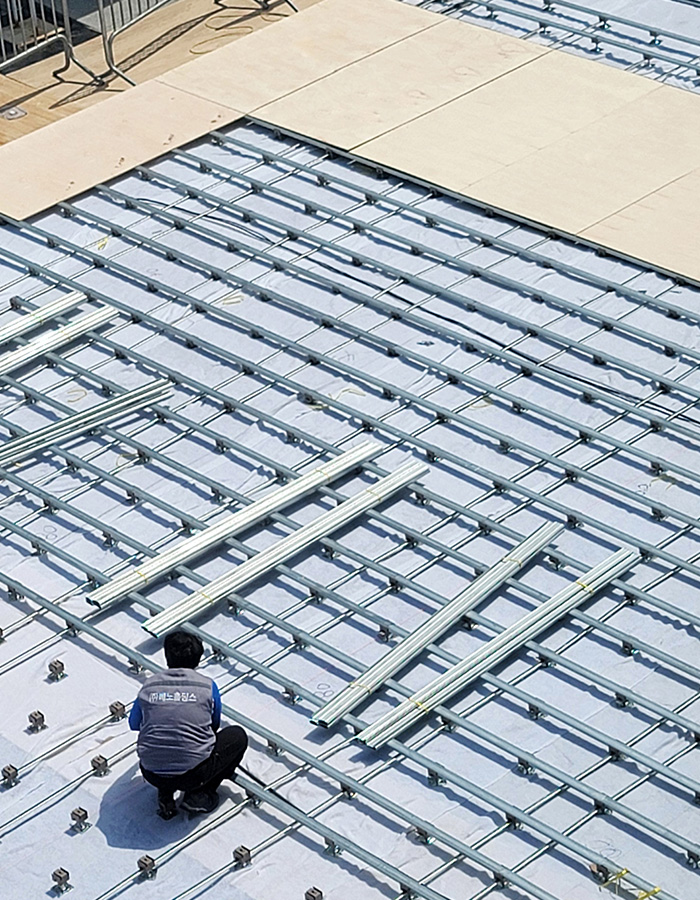

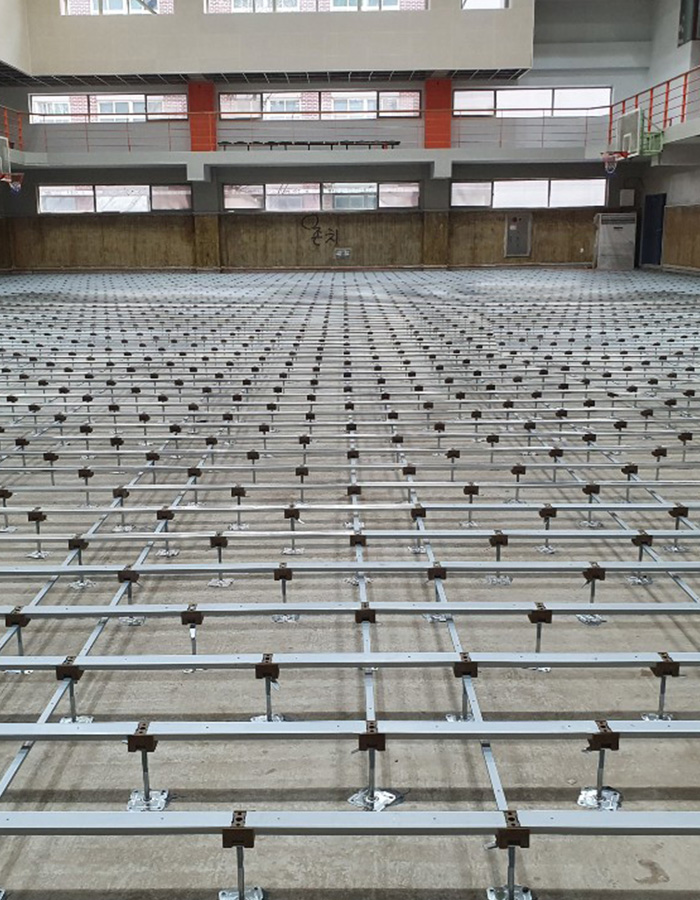

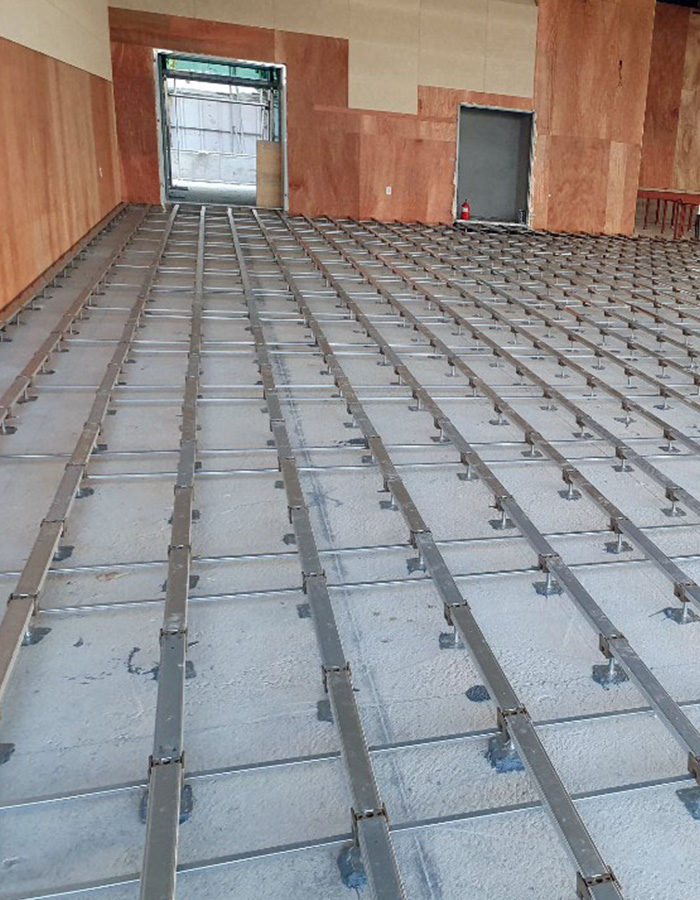

3. Bond the heads and install joists
Image Description
4. Install plywood
Image Description

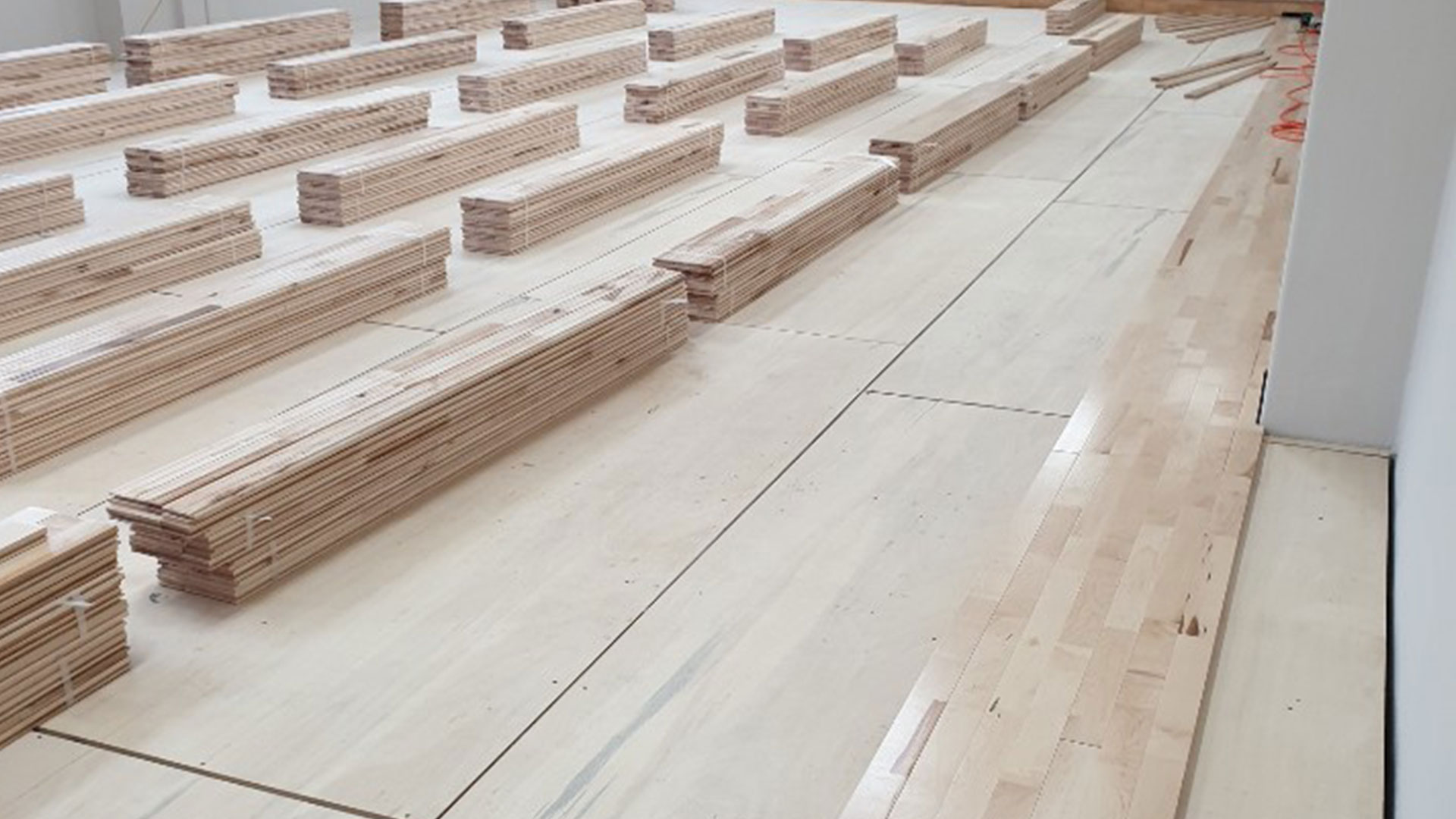

5. Install flooring
Image Description

Estimate Calculator

Published reference price: 65000 ₩/㎡
₩
㎡
Additional Services
  • ₩8,000 / ㎡
  • ₩18,000 / ㎡
  • ₩88,000 / ㎡

* This calculator provides an initial estimate only. The final quotation may vary depending on quantity, specifications, site conditions and other factors. Please contact our team for an accurate quotation.
